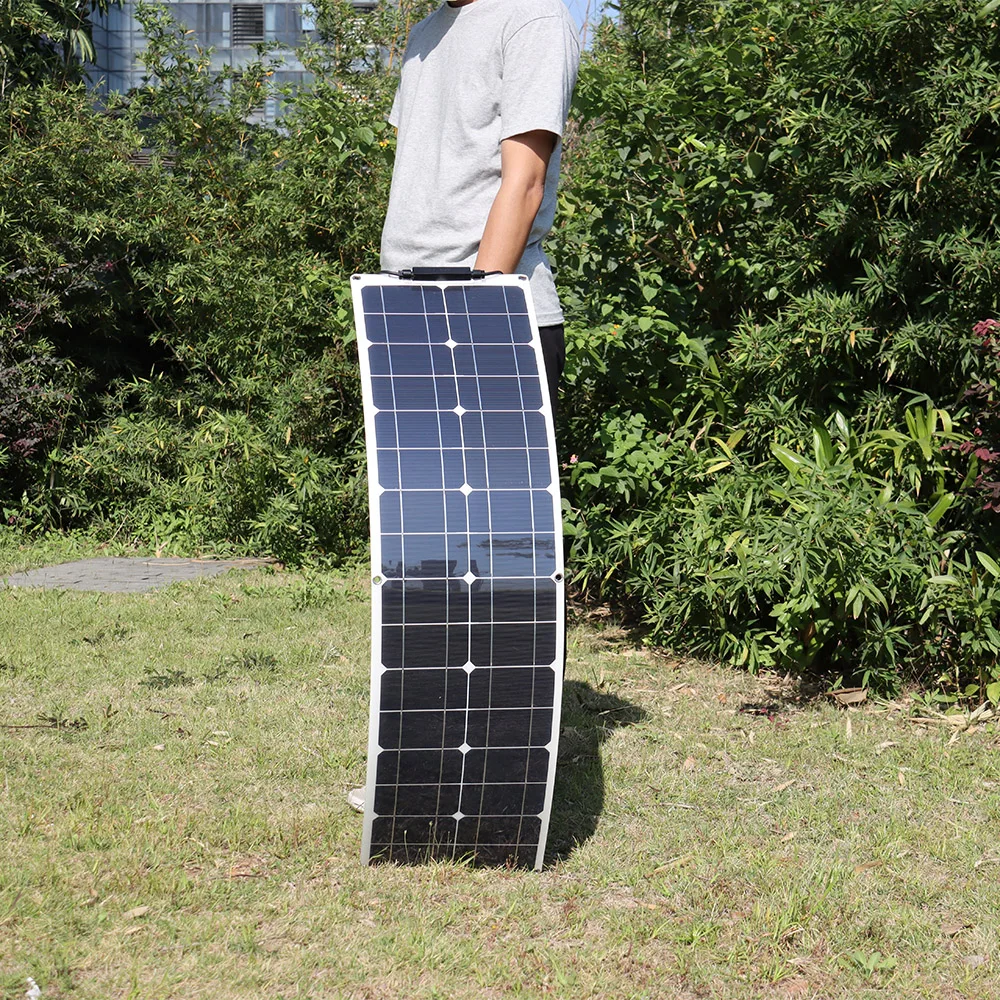

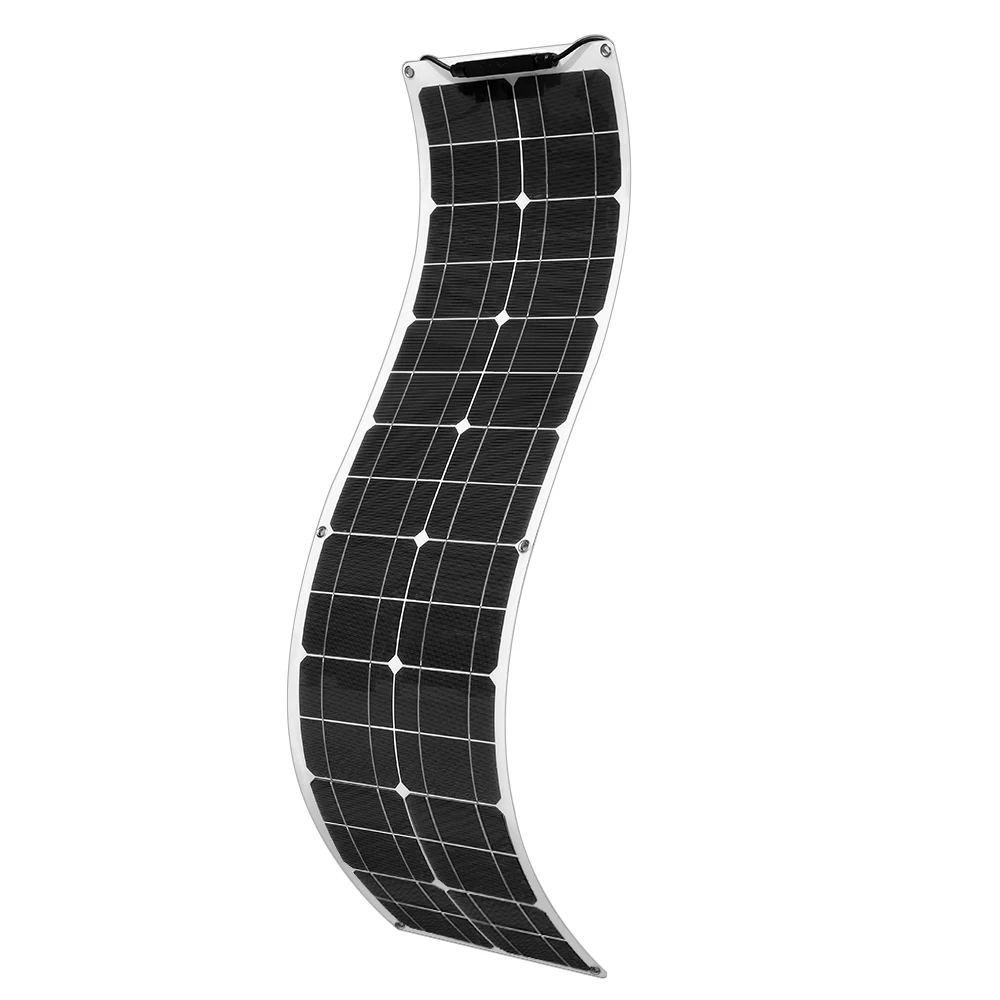

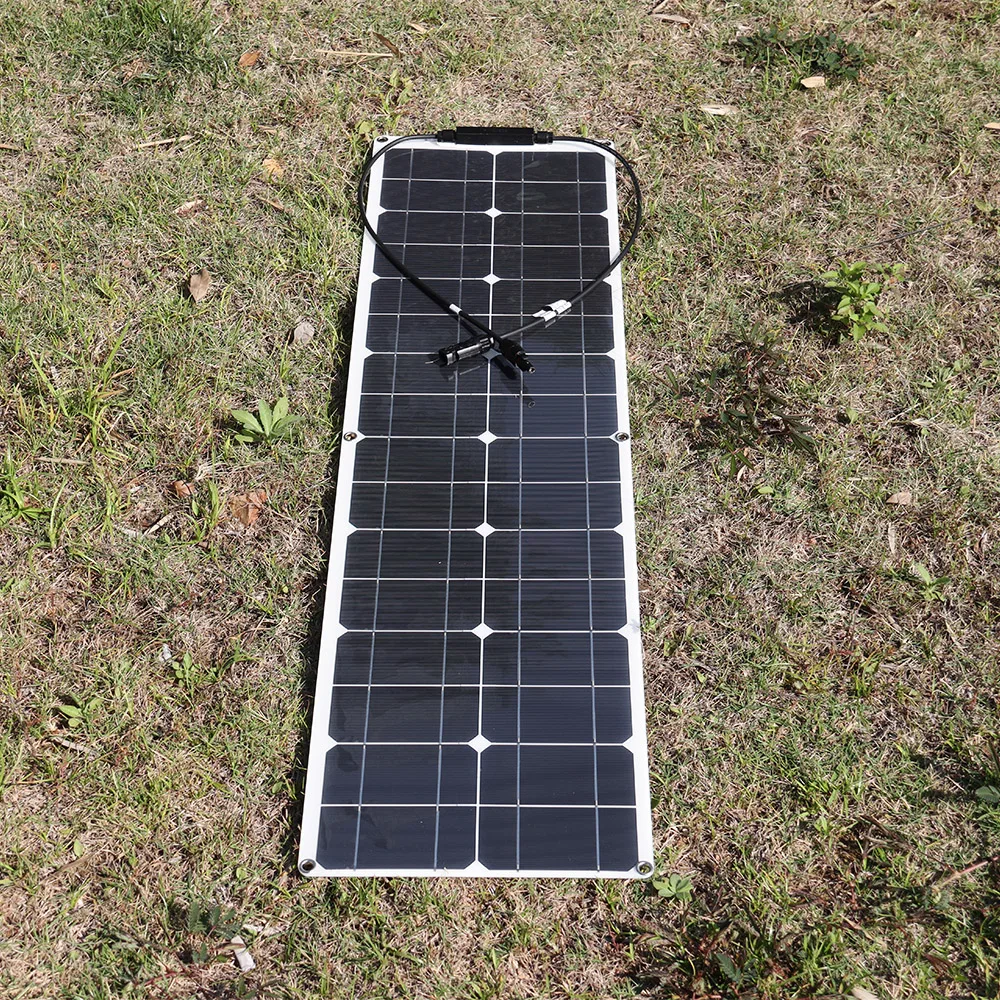

100 Watt Flexible Solar Panel 12V 100W 50W Monocrystalline Panel Solar System Lightweight Placa Solar For Camping Boat RV Home

100 Watt Flexible Solar Panel 12V 100W 50W Monocrystalline Panel Solar System Lightweight Placa Solar For Camping Boat RV Home

Regular price $62.91 USD
Regular price Sale price $62.91 USD
Sale Sold out
Tax included.

SPECIFICATIONS

Brand Name: xinpuguang

Origin: Mainland China

Number of Panels: 1

Flexible Solar Panel: Yes

Foldable Solar Panel: No

Type: Solar Panel

Module Efficien: 21.8%

Model Number: Flexible Solar Panel 50W

Size: 1090*277*3mm /820*370*3mm

Material: Monocrystalline Silicon

Nominal Capacity: 50W

Number of Cells: 32pcs

Max. Power: 50W

is_customized: Yes

Certification: CE

Certification: FCC

Certification: RoHS

Certification: weee

12V Solar Panel: 50W Solar Panel

Panel Solar: Placa Solar Flexible

Solar Panels: Placa Solar 12v

Placa Solar: Painel Solar

Placas Solares: Paneles Solares

Panneau Solaire: Panel Solar Para Casa

Maximum system voltage: 700V DC

Open circuit voltage(Voc): 16V

Short circuit current(Isc): 3.12 A

Maximum power voltage(Vmp): 19.2V

Maximum power current(Imp): 3.43A

Cell efficiency: 21%



50 Watt Flexible Solar Panel 12V 100W Monocrystalline Panel Solar System Lightweight Placa Solar For Camping Boat RV Home Roof




Felible solar panel Specification

Maximum power(Pmax) 50W

Output tolerance ± 3%

Maximum system voltage 700V DC

Open circuit voltage(Voc) 19.2V

Short circuit current(Isc) 3.43A

Maximum power voltage(Vmp) 16V

Maximum power current(Imp) 3.15A

Cell efficiency 21%

Operating temperature(NOCT) 45±2℃

Temperature range -40℃~+80℃

Number of cells 32pcs

Weight 1030g

Size 1060*277*2.5 mm  OR 1090*277*2.5mm

Standard Test Conditions : lrradiance 1000w/m^2,Temperature 25℃, AM=1.5


Features:

a.Select high-efficiency monocrystalline silicon solar cells, the power generation efficiency is about 1.2 times that of conventional polysilicon, and the overall area is smaller at the same power.


b. Using the latest component packaging technology, thinner, lighter, softer and longer life.

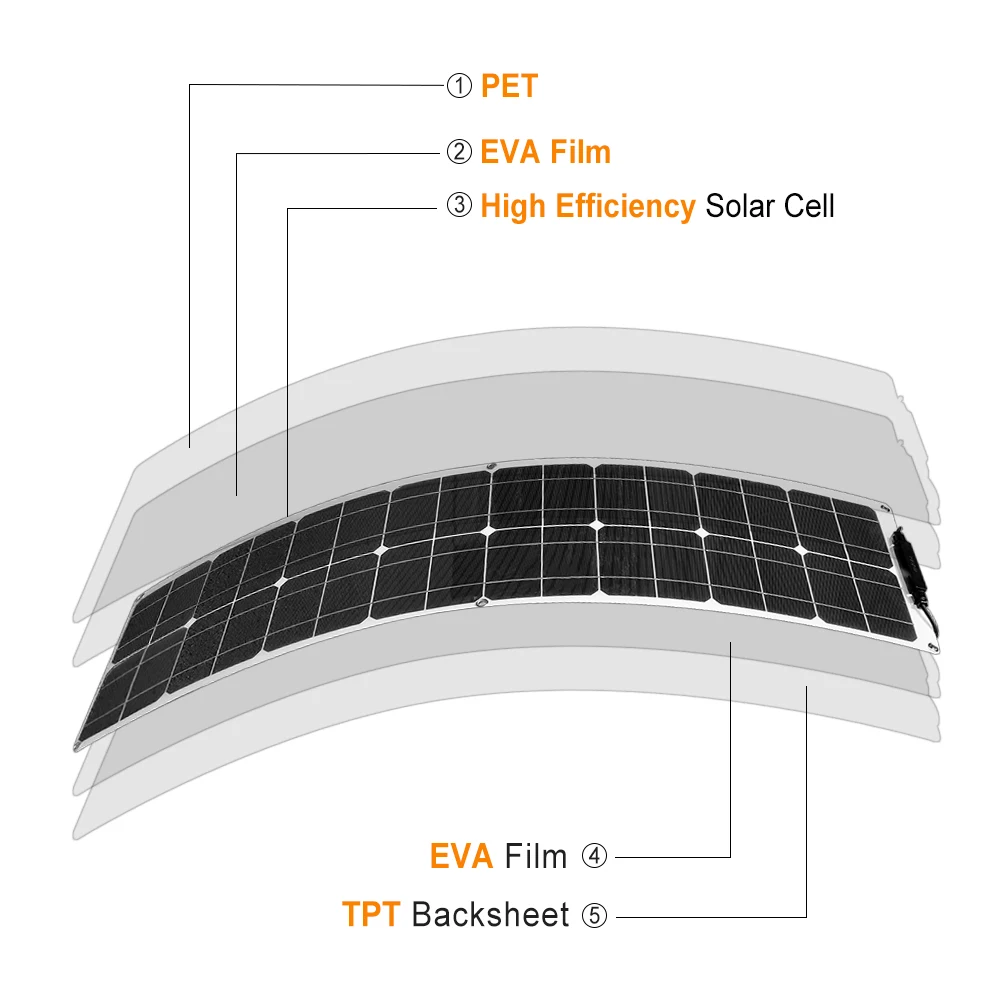

c.The surface is made of PET and treated with a special process, which is more wear-resistant and improves the absorption efficiency of sunlight.


d. With high light transmittance, safe and reliable, not afraid of high temperature, no danger of burning or explosion.

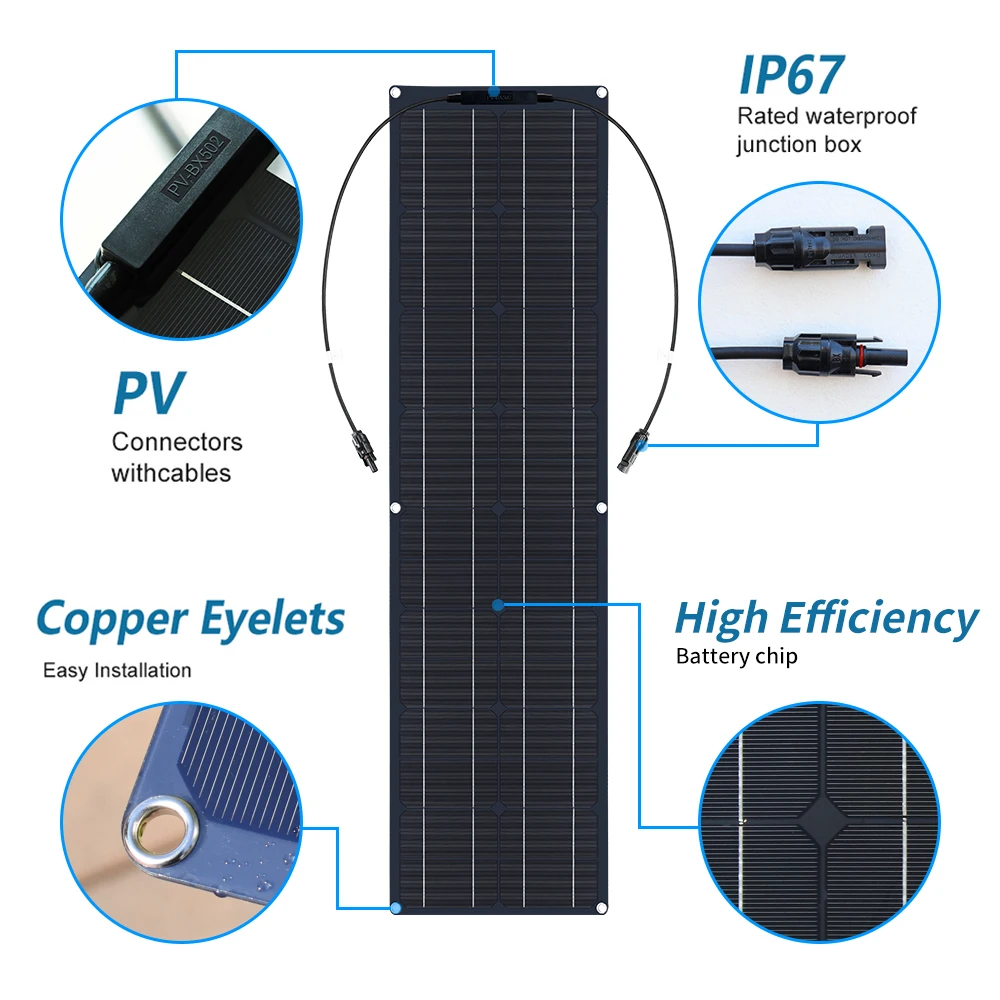

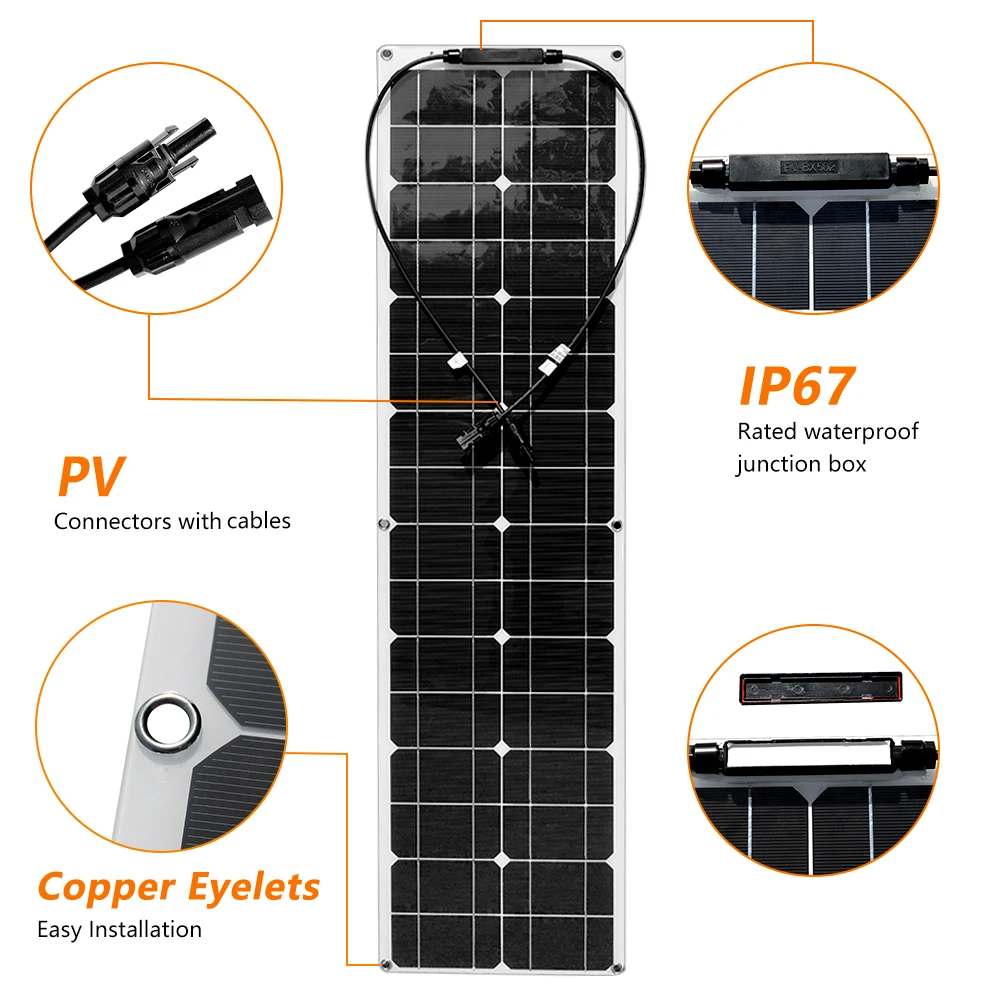

e.The junction box adopts IP67 waterproof design, contains bypass diode, and the circuit adopts overcharge and reverse current protection design.


f.Use photovoltaic special cable and connector, outdoor use is safe, waterproof, high temperature resistance and weather resistance. The connector is easy to use, plug and play.

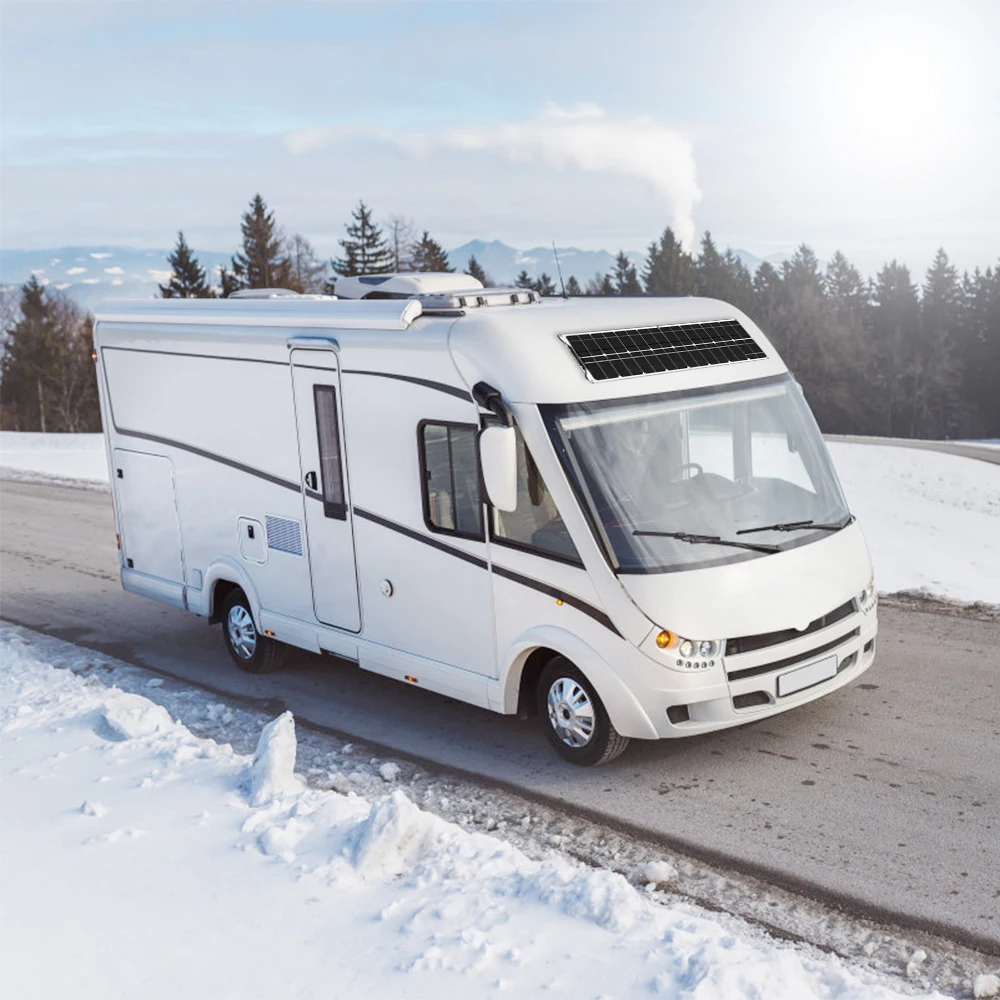

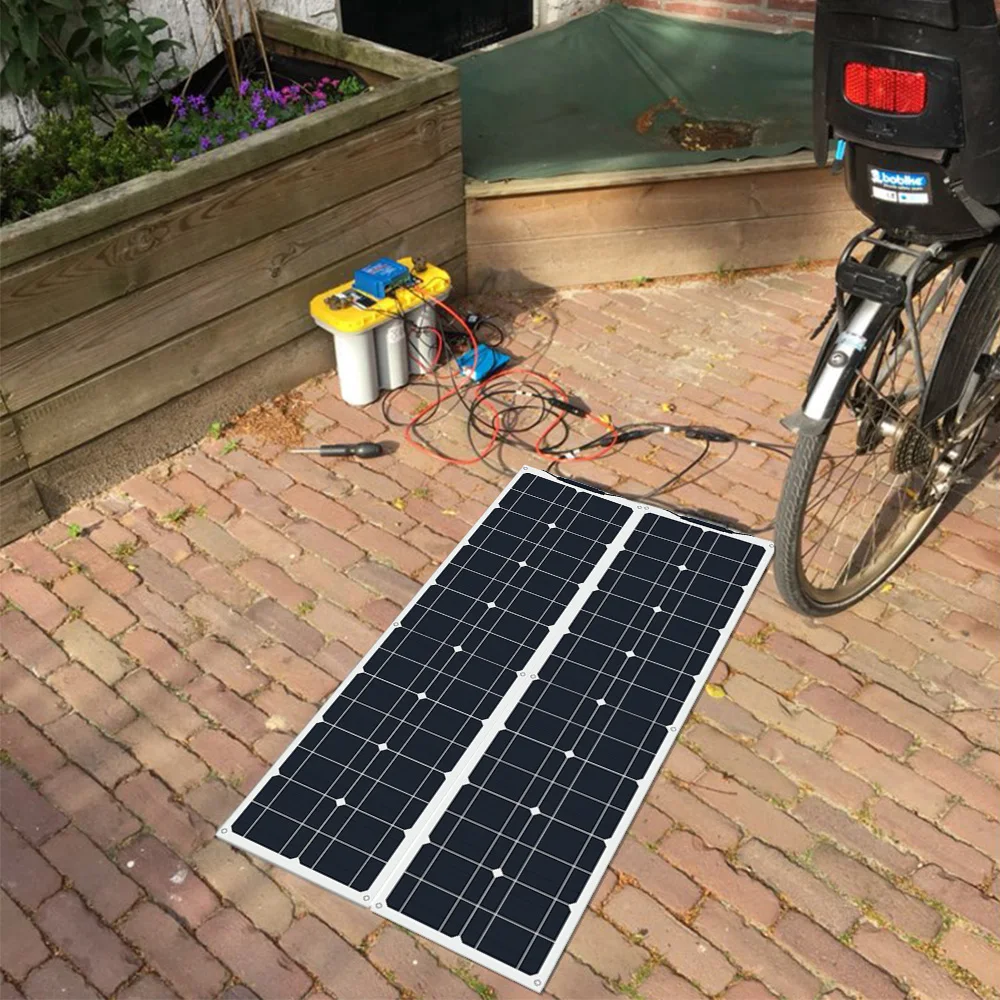

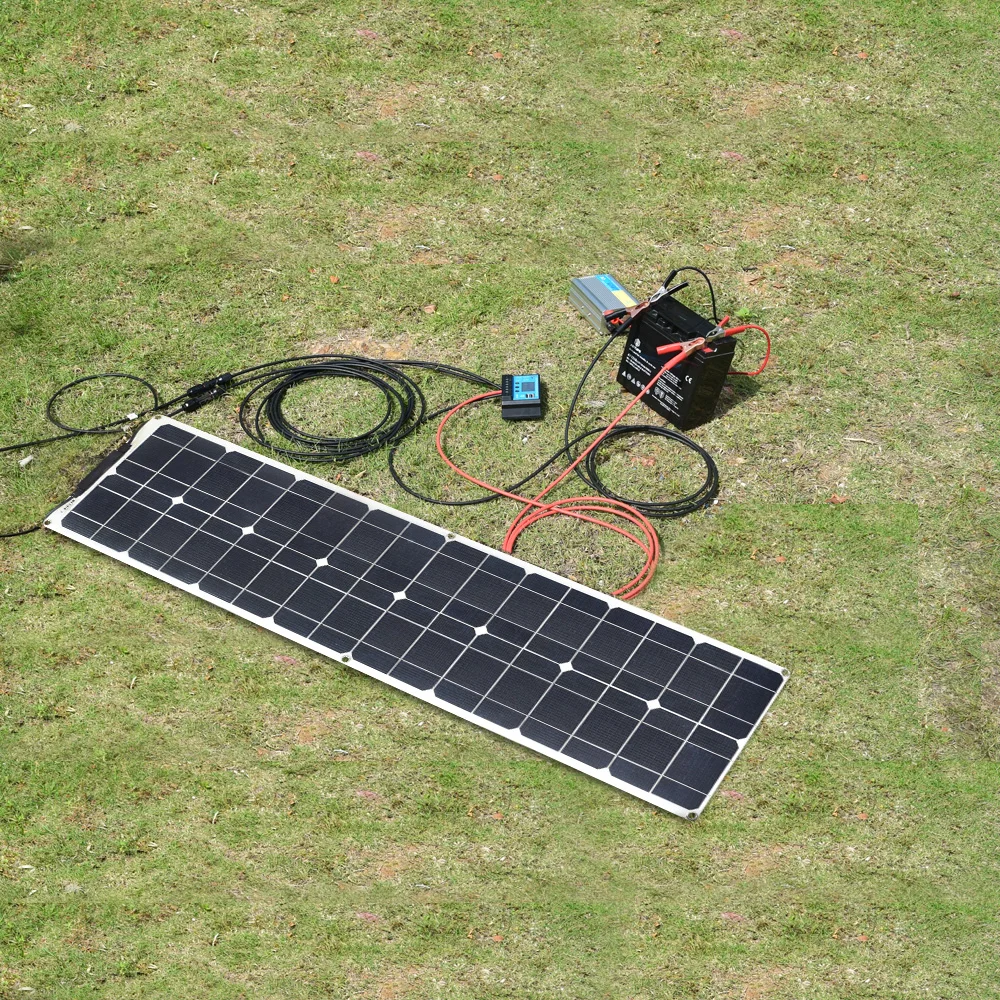

g. This product is a solar module. It is recommended to be used with controllers and batteries. It can be used in various scenarios such as households, camping, RVs, yachts, street lights and solar power stations.


Notes for use:

a. This product must not come into contact with highly corrosive substances.

b. It is strictly forbidden to modify, disassemble, drop, and hit the junction box and products by yourself, avoid stepping on the surface andscratching the surface with hard objects during use.

c. A large number of scratches or dirt on the surface of the solar panel may cause the solar cell module to be inefficient, and in severe cases may cause burnout.

d. The suitable ambient temperature range of this product: -20 ° C-80 ° C, please do not exceed this range.

e. The solar panel must be installed in an area with good sunlight and no
shadow. The long-term work of the solar cell module in the sun with shadow may have the risk of burning.

f. It is forbidden to connect the positive and negative poles of the product together, and it is for bidden to put the product into water or fire, otherwise it will damage the product.

g. The overall power of the photovoltaic module must be less than the rated power of the controller (rated
voltage × rated current). It is strictly prohibited to overload the controller.

h. The total voltage of the photovoltaic module connected to the controller must be within the photovoltaic input voltage range of the controller.

i. The inverter can only be connected to the battery, not directly to the controller.

Package included:

1 x 50W solar panel

or

2 x 50W solar panel
